What can Baiyi Zero Point do?

self centering vise

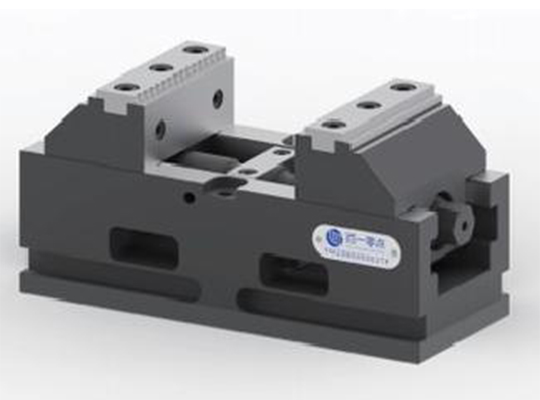

YMZ series self-centering vise

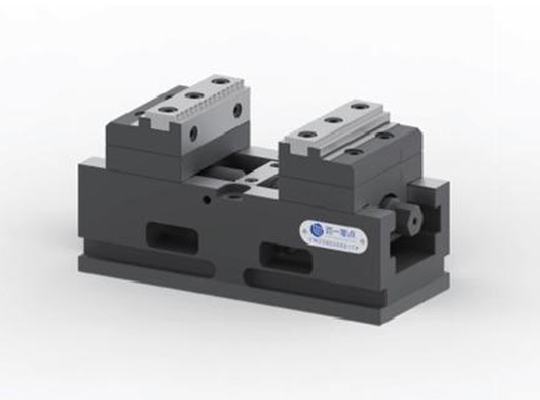

  • YMZ series self-centering vise Jaw Type I

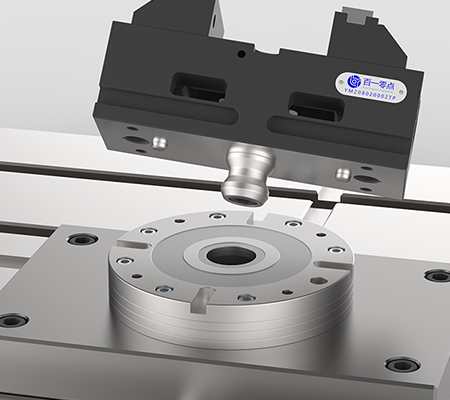

    Screw holes for quick change pull studs embeded. Optimized design for quick change system

    Two-way centering clamping, manual operation, no power source required

    A variety of jaws available

    Jaws reversible to extend clamping range

    Multiple clamping depths

    Repeat positioning accuracy 0.015mm

  • YMZ series self-centering vise Jaw Type Il

    Especially designed for the processing of aluminum alloy and other non-ferrous metals

    Encapsuled structure, chips easy cleaning

    A variety of jaws available

    Jaws reversible to extend clamping range

    Multiple clamping depths

    repeat positioning accuracy 0.015mm

    All steel

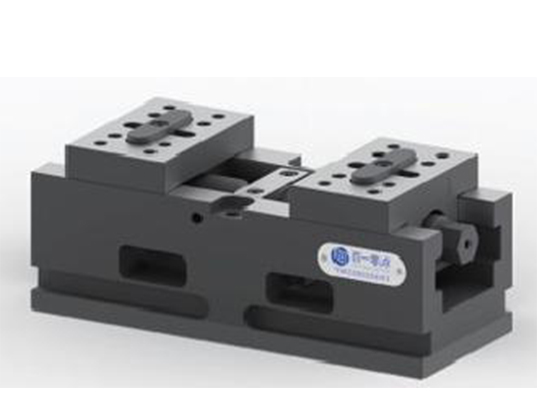

  • YMZ series self-centering vise Jaw Type III

    Base of Jaw type lll is the same with Jaw type l.

    Top jaws are not included as standard.

    Soft toniaws ootiona

YME series self-centering vise

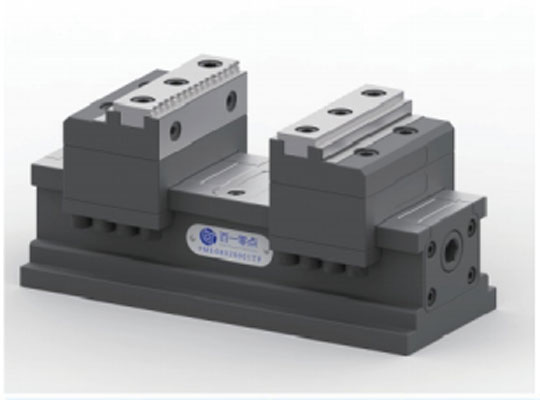

  • YME series self-centering vise Jaw Type I

    Especially designed for the processing of aluminum alloy and other non-Ferrous metals

    Encapsuled structure, chips easy cleaning

    A variety of jaws available

    Jaws reversible to extend clamping range

    Multiple clamping depths

    Repeat positioning accuracy 0.015mm

    All stee

YMR series self-centering vise

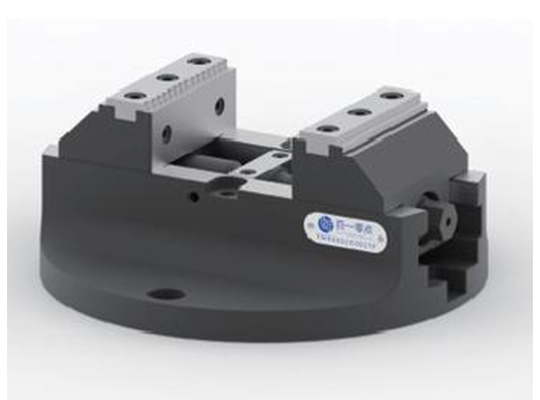

  • YMR series self-centering vise Jaw Type I

    Adapted to rotary table

    Two-way centering clamping, manual operation, no power source required

    A variety of jaws available

    Jaws reversible to extend clamping range

    Multiple clamping depths

    Repeat positioning accuracy 0.015mm

    All steel

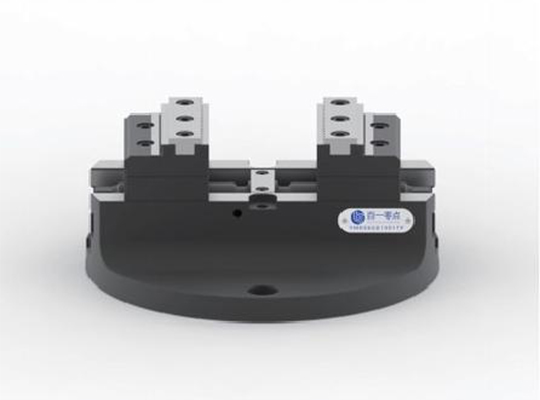

  • YMR series self-centering vise Jaw Type II

    Adapted to rotary table

    Two-way centering clamping, manual operation, no power source required

    A variety of jaws available

    Jaws reversible to extend clamping range

    Multiple clamping depths

    Repeat positioning accuracy 0.015mm

    All steel

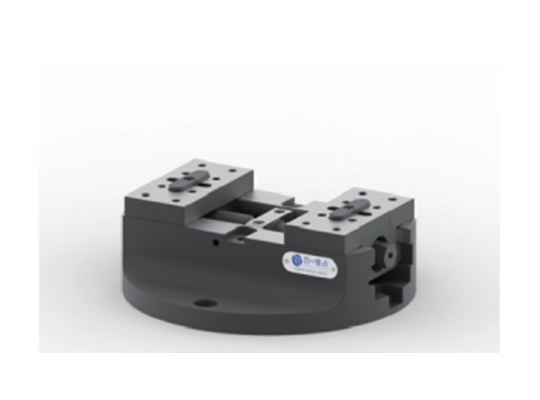

  • YMR series self-centering vise Jaw Type III

    Soft top jaws not included as standard

    Soft top jaws optional

    Adapted to rotary table

    A variety of jaws available

    laws reversible to extend clamping range

    Multiple clamping depths

    Repeat positioning accuracy 0.015mm

    All steel

YMO series self-centering vise

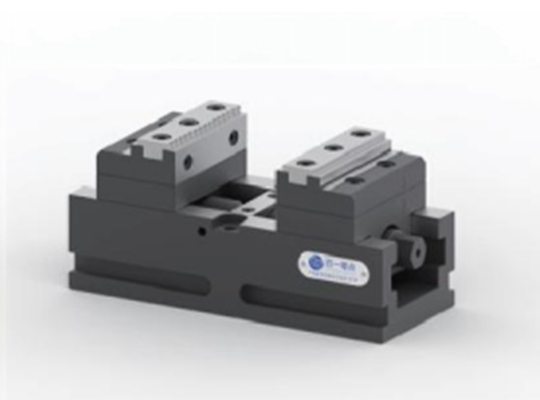

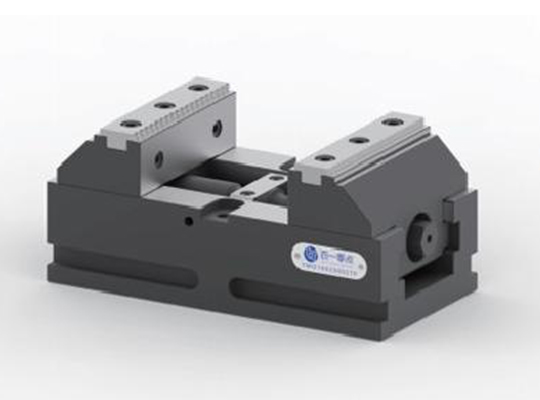

  • YMO series self-centering vise Jaw Type I

    Adaptor plate for quick change system optional

    Light in weight

    A variety ofjaws available

    laws ersible to extend clamping range

    Multiple clamping depths available

    Repeat positioning accuracy 0.015mm

    All steel

  • YMO series self-centering vise Jaw Type II

    Adaptor plate for quick change system optional

    Jaws ersible to extend clamping range

    Mu ultiple clamping depths available

    Repeat positioning accuracy 0.015mm

    All steel

  • YMO series self-centering vise Jaw Type III

    Base of Jaw type lll is the same with Jaw type l.

    Top jaws are not included as standard.

    Soft top jaws optional.

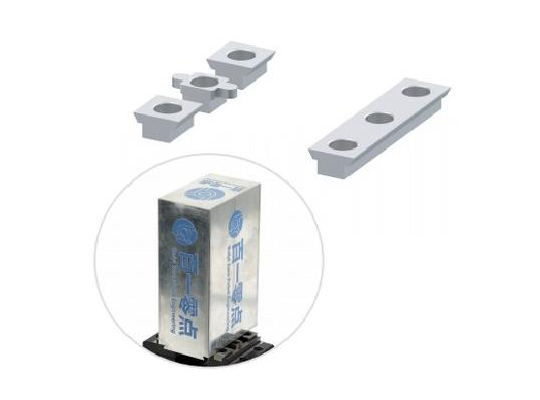

SPARE PARTS, FOR SELF CENTERING VICOS

  • Dovetail inserts

    Ode Comments

    DI080 Dovetail insert for jaw width 80mm

    DI100 Dovetail insert for jaw width 100mm

    DI125 Dovetail insert for jaw width 125mm

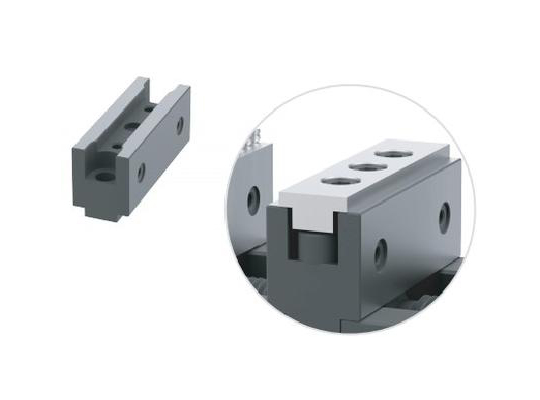

  • Center fixed Jaw

    Code Comments

    OCJ080 Center fixed jaw for body width 80mm

    OCJ100 Center fixed jaw for body width 100mm

    0CJ125 Center fixed jaw for body width 125mm

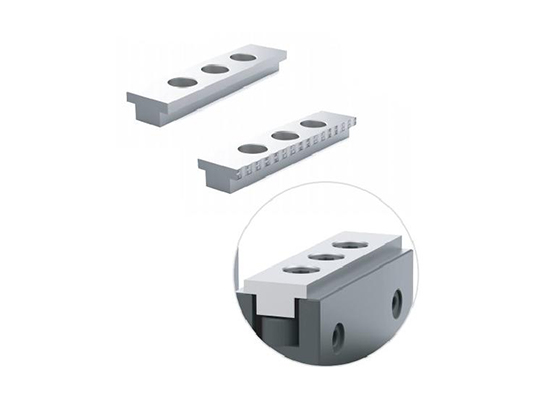

  • Center fixed Jaw insert

    Code Comments

    1080PPC Center fixed jaw insert for OC080,both side flat

    100PPC Center fixed iaw insert for OCJ100.both side flat

    1125PPC Center fixed jaw insert for OCJ125,both side flat

    I080TTC Center fixed jaw insert for OC080,both side teeth

    1100TTC Center fixed jaw insert for OC100,both side teeth

    1125TTC Center fixed jaw insert for OC125,both side teeth

PRECISION VICE

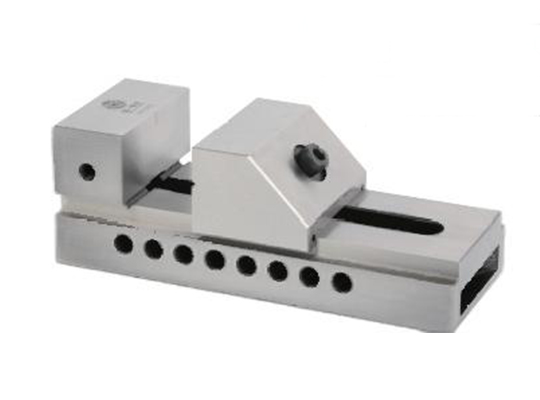

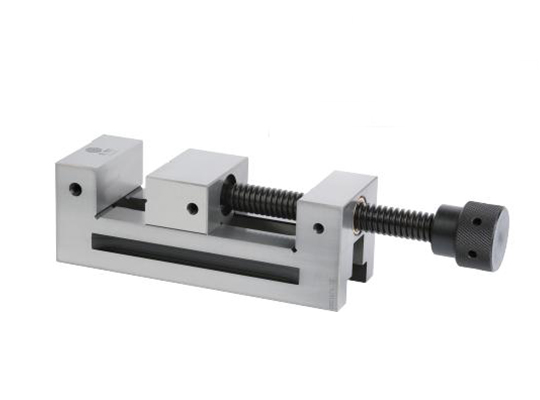

  • QKG PRECISION VICE

    Made of high quality alloy steel

    Hardness HRC58-62

    Parallelism 0.005mm/100mm

    Squareness 0.005mm

    High accuracy is guaranteed no matter the

    vice is placed horizontally, vertically or by side

    Widely used in precision measuring, inspection, grinding, EDM and etc.

  • QGG PRECISION VICE

    Made of high quality alloy steel

    Hardness HRC58-62

    Parallelism 0.005mm/100mm

    Squareness 0.005mm

    High accuracy is guaranteed no matter the

    vice is placed horizontally, vertically or by side

    Widely used in precision measuring, inspection, grinding, EDM and etc.

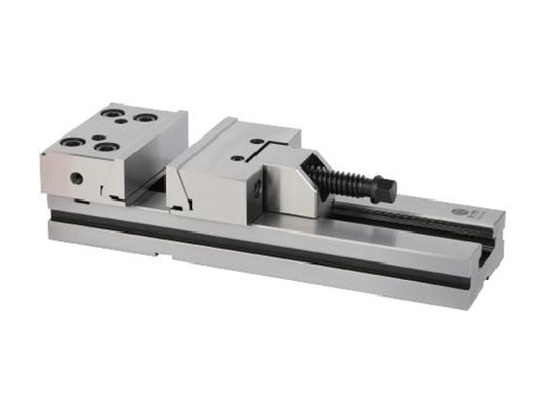

  • PRECISION MODULAR VICES

    Parallelism:0.005/100mm

    Squareness: 0.005mm

    Made of high quality alloy steel

    Hardness HRC58-62

    Parallelism 0.005mm/100mm

    Squareness 0.005mm

    Widely used in CNC and other precision machine tools can be lined up for long workpiece

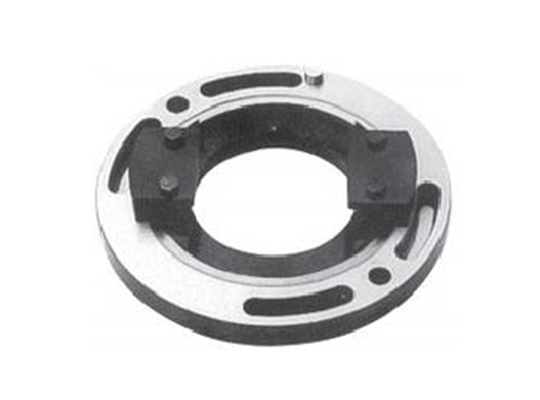

  • OPTIONAL SWIVEL BASE

MACHINE VICE

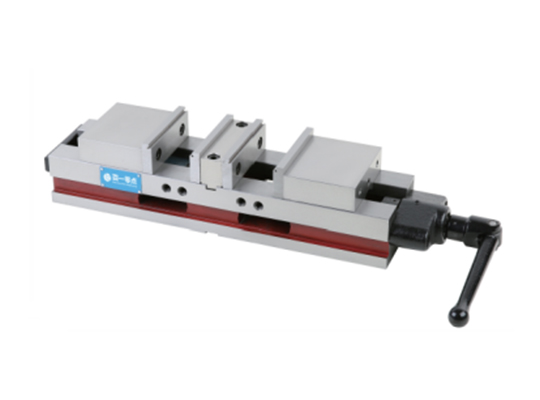

  • DOUBLE OPENING MACHINE VICE

    Made of HT250

    Parallelism 0.01/100mm

    Squareness 0.02mm

    30° angle lock prevents jaw moving up

    Can be lined up for long workpiece

    Different size workpieces can be clamped simultaneously on one vice Remove the center rack, the vice can be used as a self centering vice

  • ANGLE TYPE MACHINE VICE

    Made of ductile cast iron

    Parrallelism 0.01mm/100mm

    Squareness 0.02mm

    30°angle lock prevents jaws from moving up

    can be lined up for long workpiece

    Hardness of guide above HRC40

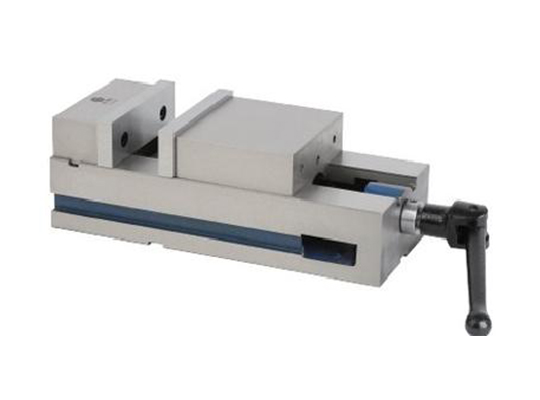

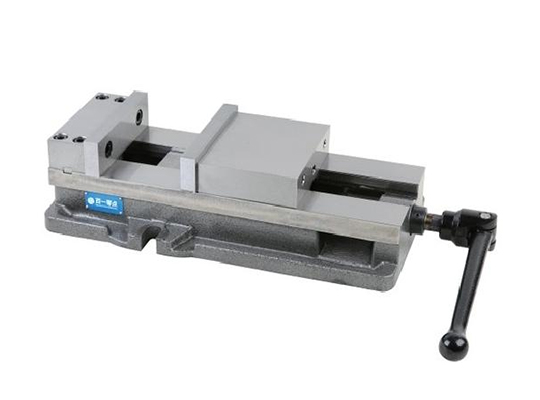

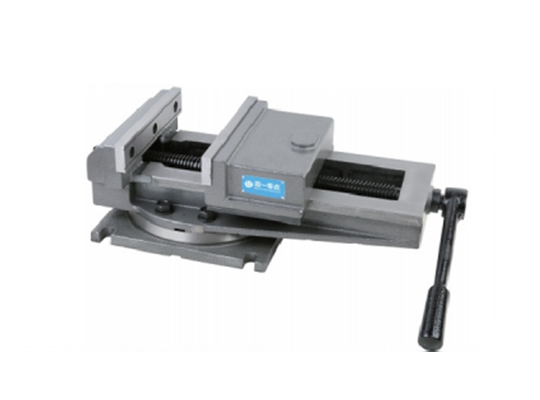

  • ACCU-LOCK PRECISION MACHINE VICE

    Made of HT250

    30°angle lock reduces jaw moving up

    can be lined up for long workpiece.

    Thrust bearing reduces friction and increases clamping force

    Parrallelism 0.01mm/100mm

    Squareness 0.02mm

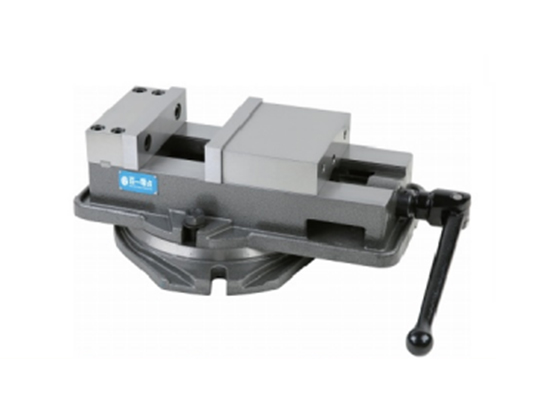

  • ACCU-LOCK PRECISION MACHINE VICE

    Made of HT250

    30°angle lock reduces jaw moving up

    With detachable swivel base

    Parrallelism 0.01mm/100mm

    Squareness 0.02mm

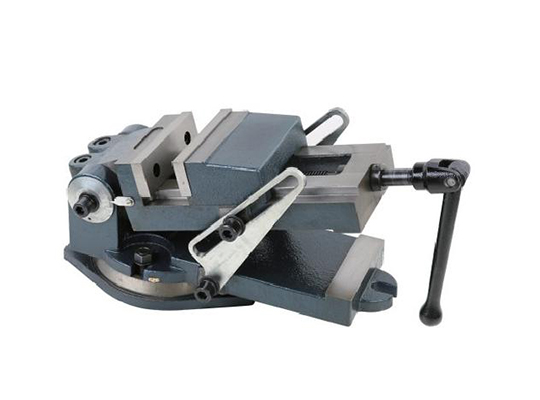

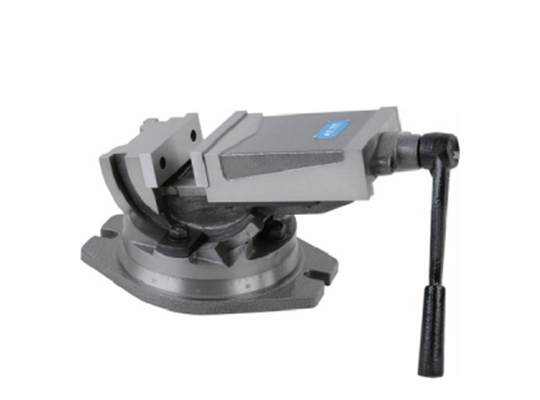

  • TILTING MACHINE VICE

    Made of HT250

    360° swivel, 60°tilting

    Parrallelism 0.01mm/100mm

    Squareness 0.03mm

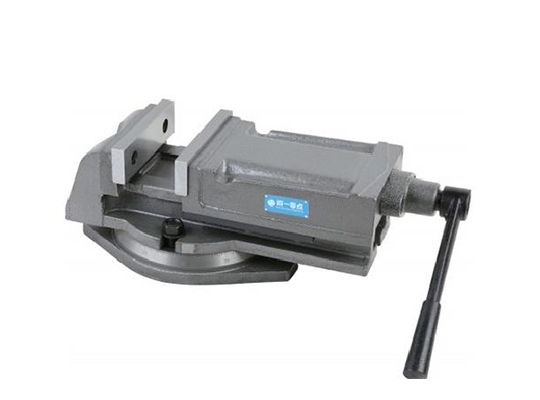

  • QB MACHINE VICE

    Made of HT250

    Parallelism 0.01/100mm

    Squareness 0.03mm

    With detachable swivel base

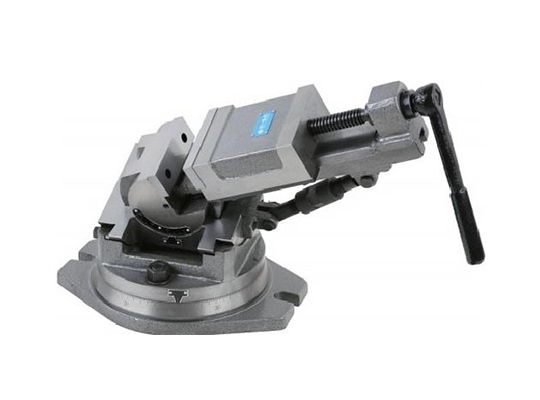

  • UNIVERSAL MACHINE VICE

    Made of HT250

    360° swivel

    90° vertical tilting and 45°titing from center to each side

  • QH MACHINE VICE

    Made of HT250

    Parrallelism 0.01mm/100mm

    Squareness 0.03mm

    With detachable swivel base

  • PRECISION SINE VICE

    Made of HT250

    Swivel range: 360°around Base

    Tilting range: 45° vertical

DRILLING MACHINE VICE

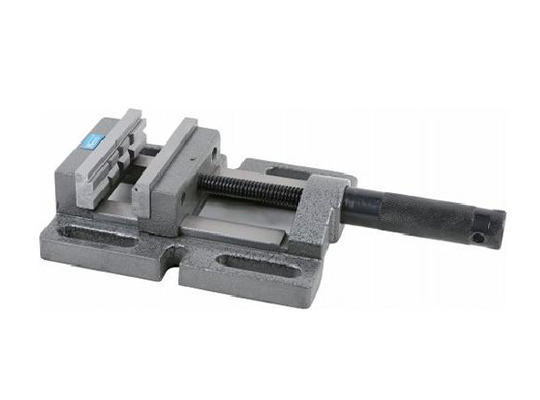

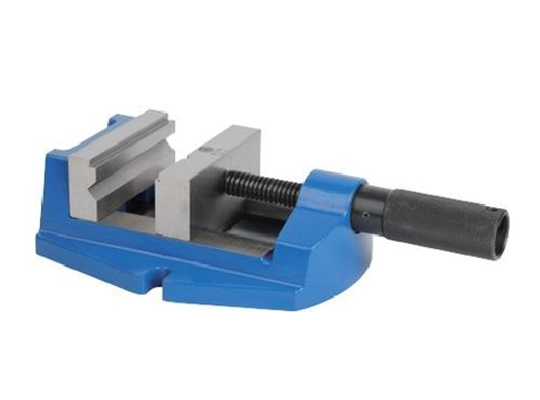

  • DRILLING MACHINE VICE I

    Parrallelism 0.01mm/100mm

    Squareness 0.02mm

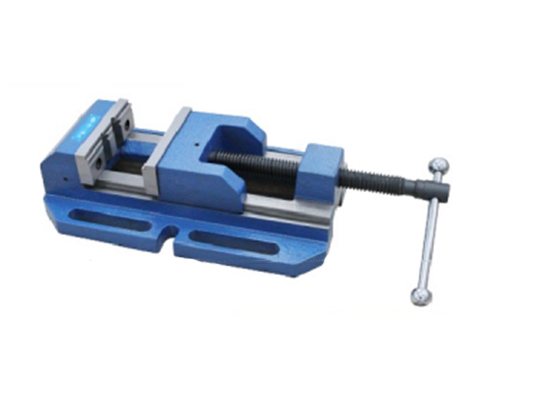

  • DRILLING MACHINE VICE II

    Jaws with prism to clamp workpiece

    Jaws with horizontal and vertical V-slots to clamp bar

    Parallelism 0.01/100mm

    Squareness 0.02mm

    Hardness of jaws HRC45

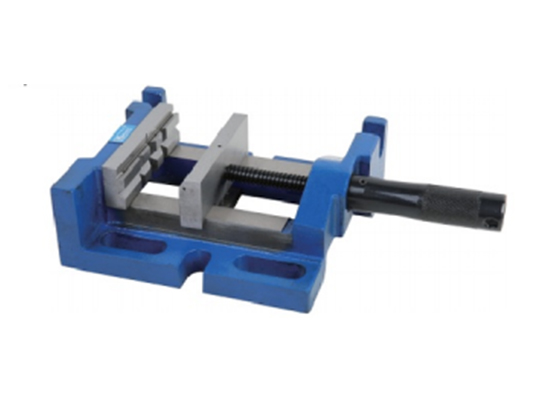

  • DRILLING MACHINE VICE III

    Parallelism 0.15mm

    Squareness 0.03mm

  • DRILLING MACHINE VICE IIII

    Parallelism 0.15mm

    Squareness 0.03mm

MACHINE TABLE

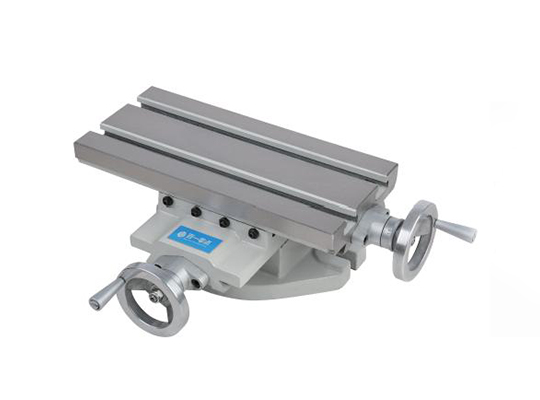

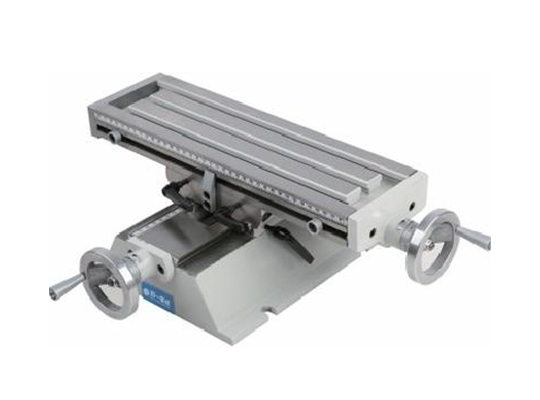

  • COMPOUND TABLE

  • PRECISION CROSS SLIDE TABLE

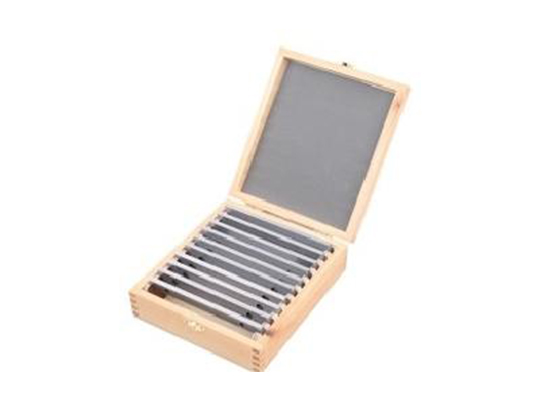

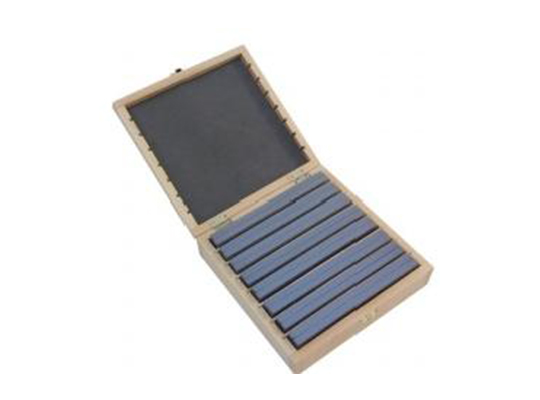

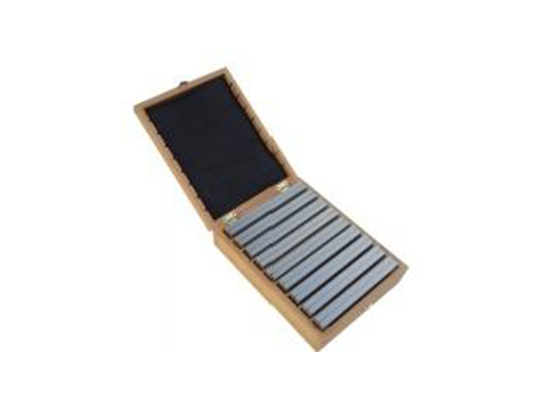

PARALLEL SET

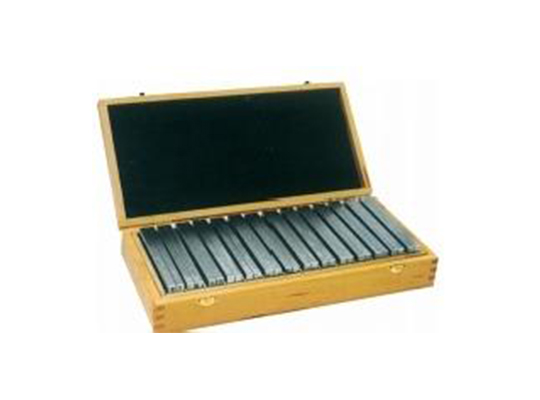

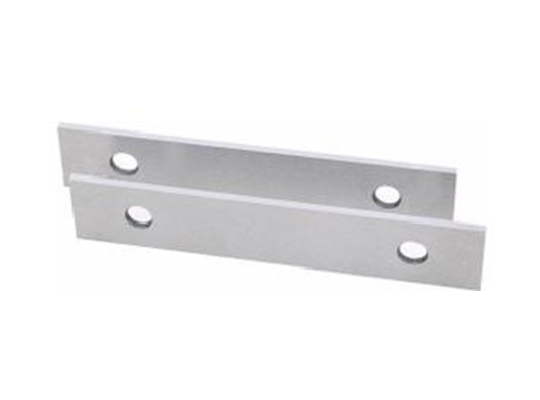

  • 1/8"10 PAIR PARALLEL SET

    Order code:3003-2001

  • 9 PAIR PARALLEL SET

    Order Code 3003-:2007

    Specification of size:8.5mmTx-(14,16,20,24,30,32, 36,40,44mm)HX150mml

    Tolerance of size:0.005mm

    Arallelism:0.01mm

    Hardeness:HRC55-62

  • 1/4"9 PAIR PARALLEL SET

    Order Code: 3003-2004

  • 14 PAIR PARALLEL SET

    Order Code 3003-:2008

    Specification of size:10mmTx-(14,16,18,20,22,24,26,28,30,32, 35,40,45,50mm)HX150mml

    Tolerance of size:±0.005mm

    Arallelism:0.01mm

    Hardeness:UDC55-6

  • 1/2" 8 PAIR PARALLEL SET

    Order Code: 3003-2006

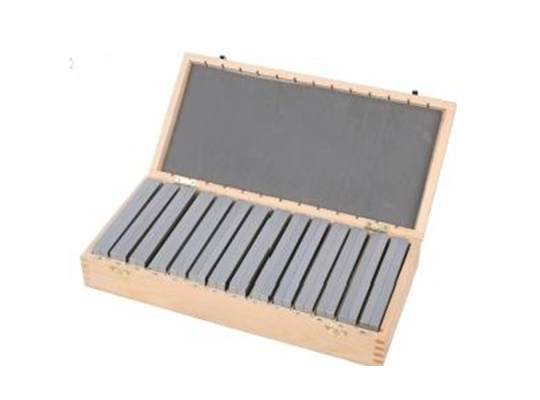

  • 24 PAIR PARALLEL SET

    Tolerance of size:±0.01mm

    Parallelism: 0.01mm

    Hardeness: HRC55-62

......

GET FREE QUOTE

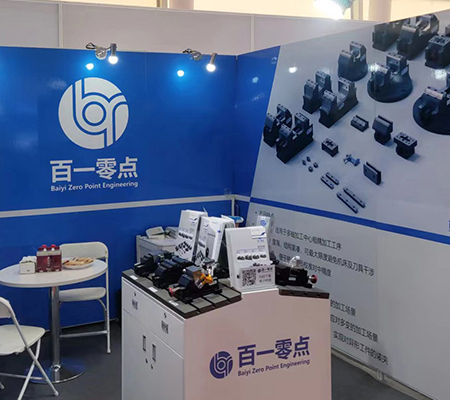

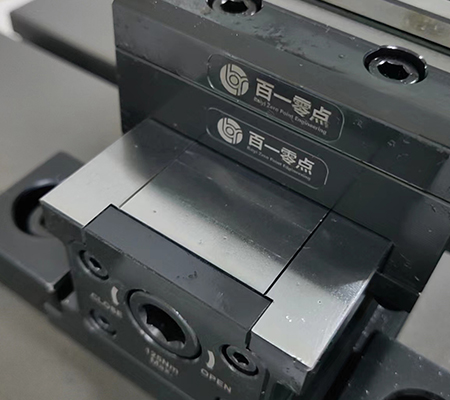

EQUIPMENT DISPLAY

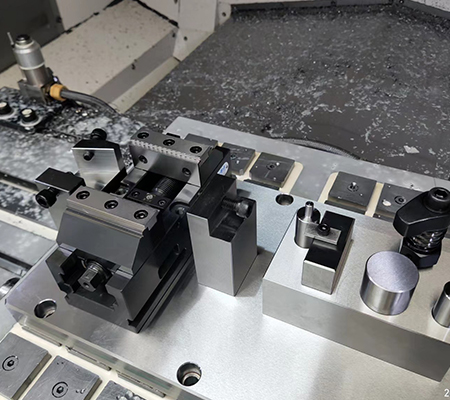

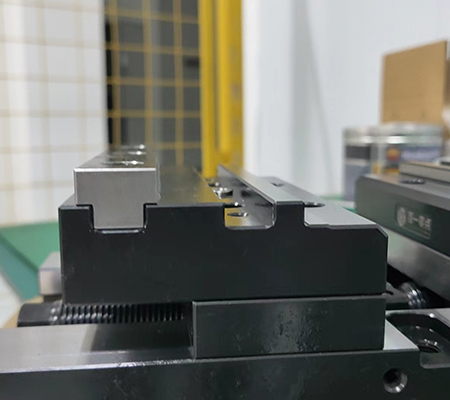

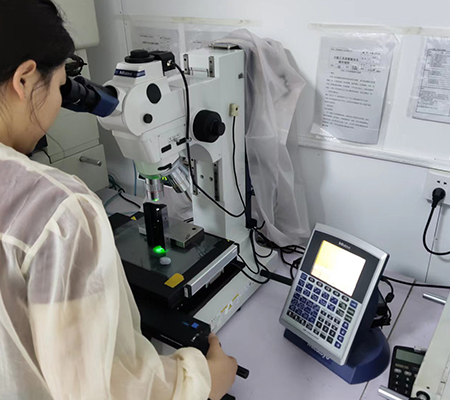

  • Equipment Display

  • Equipment Display

  • Equipment Display

  • Equipment Display

  • Equipment Display

  • Equipment Display

Who is Baiyi Zero Point？

Baiyi Zero Point Engineering Co, Ltd. located in Qingdao, a beautiful city by sea in north China. We focus on the manu- facturing of clamping tools. Since the foundation in 2017 we have kept on improving our technique and quality control. We have high accuracy CNCs, grinding machines, testing instruments and other advanced tools. Together with a professional, committed and effi- cient team, we produce decent vices for the world. And you will find us very reliable, both in product quality and in protecting customer' s interest.

Service guarantee

Provide high-quality products and value-added services to Google with excellent design team and excellent production equipment

Source Factory

A high-tech enterprise specializing in the research, development, production, and sales of precision machine tool accessories and non-standard fixtures and fixtures

Professional after-sales service

Always adhere to the business principle of putting people first and establishing a business with integrity, and provide a comprehensive outcome plan for the enterprise
